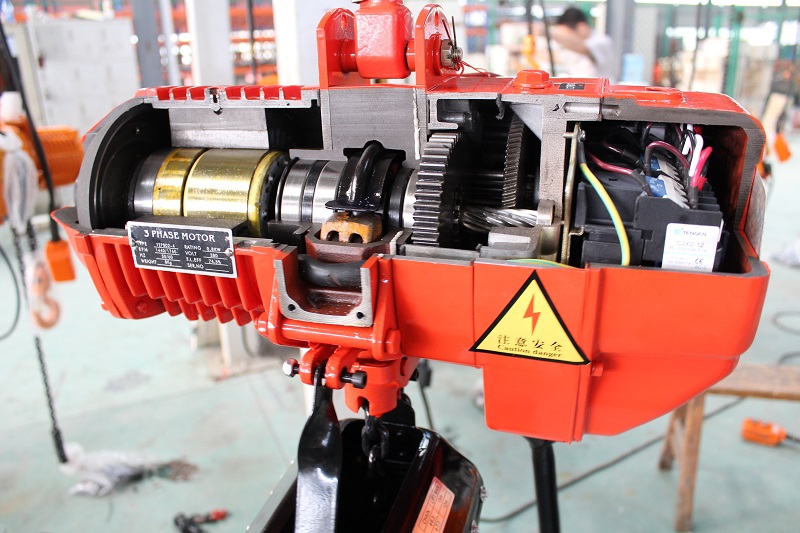

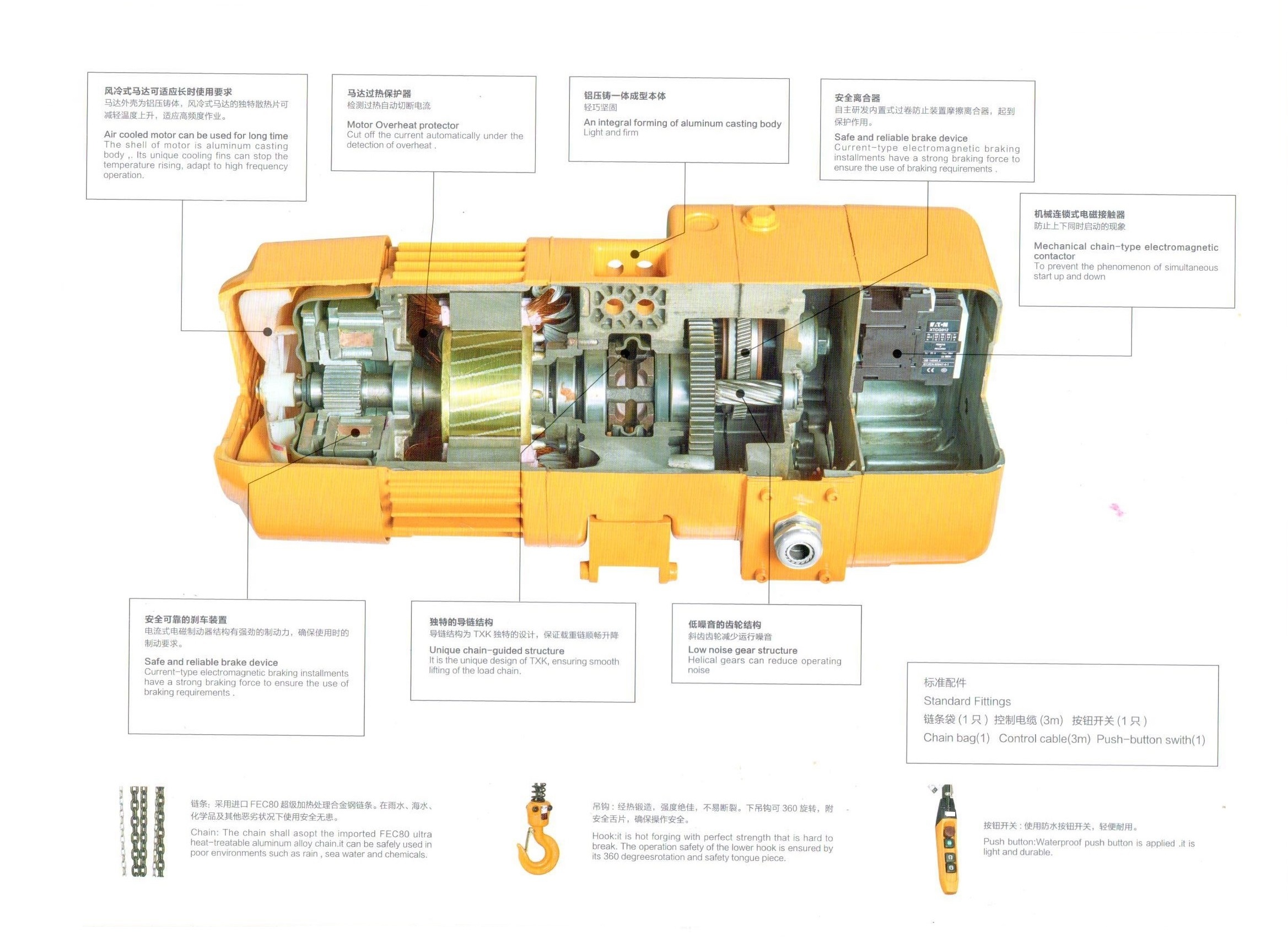

1.Aluminuim die-cast body
Designed with strength and stability in mind, the body is both lightweight and tough
2.Chain container
Made of durable canvas
3.Load chain
FEC Japan chain
DAT（G80）
Norm EN818-7
4.Push button control
New ergonomic design, it is easier to use ,greater durability,and is included as standard equipment
5.Bottom hook
The load hook is fitted with a safety latch and can swivel 360°, reducing kinking and twisting of the load chain。
6.External motor fan
The aluminium die cast motor frame with external motor fan cools the hoist during heavy use
7、Electromagnetic brake
The electromagnetic brake generates strong braking forces and holds the load securely
8 Thermal motor protector
A sensor will cuts the power in the case of overheating
9 Chain guide
Chain guide is an open structure installation, easy maintenance & replacement

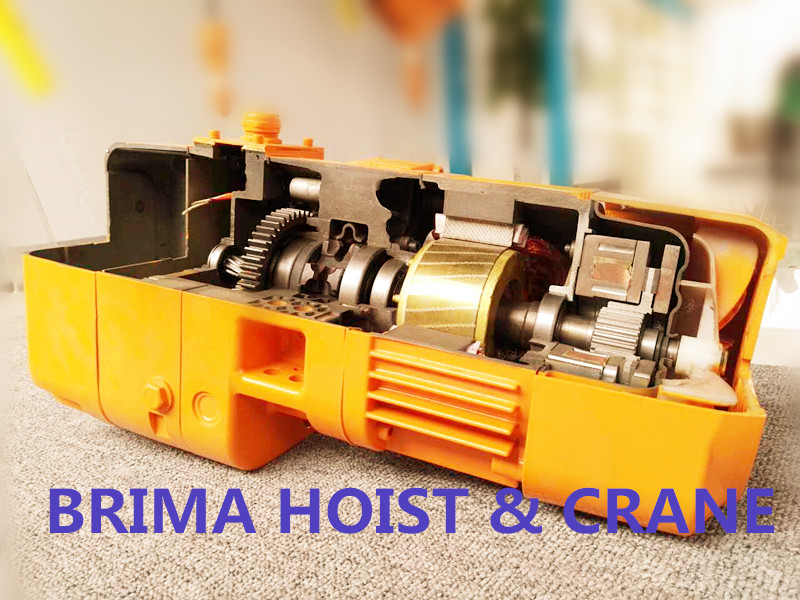

10  Gearbox
 Helical gears offer a smooth and quiet the operation
11. Friction clutch
Developed as an overload protection which interrupts the transmission power from the motor, in case of the hoists is overloaded.
12 Direct wiring
Easy to connect and disconnect using special internal connections
13 Integrated inverter
The LCD-display displays and counts the number of lifting cycles and operating time. With the help of the displayed date. Inspection and replacement intervals can effectively be controlled
14 Upper-lower limit switch
The limit switch turns the motor off when the highest of lowest points have been reached.

New Features:

1. All Aluminum Die-cast Body

2.Cooling Fan for Motor

3.G80 High Strength Alloy Steel Load Chain

4.Clutch for Overload Protection

5.Limit Switch for Upper and Lower

6.Converter as Optional Accessories

7. Electromagnetic Brake

What makes us different from others?

1. Production Capacity
*Over 96,000 square meters factory territory.
*Maximum daily capacity of new electric hoist can reach to 300 units.

2. Qualifications
*BRIMA is ISO9001:2008 cerfified company.
*Factory authorized by TUV Germany.
*CE & GS certificates for all products.

3. Marketing
*BRIMA is well sold in more than 60 countries.
*We serve over 2,000 companies in the world, include "500 Fortune Enterprises".
*Best price in Competitors of same products
